Description

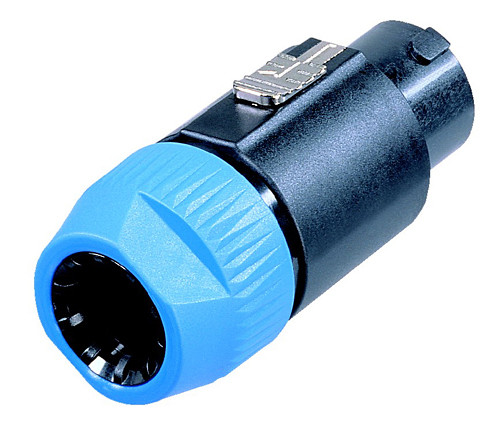

The Neutrik NL8FC is an 8-pole cable connector, the industry standard for loudspeaker connections, offering reliable and robust connections with a reliable locking system. It features a latch lock, chuck type strain relief for cables with an 8 to 20 mm diameter, and touch-proof contacts that meet all safety requirements (IEC, UL, CSA).
Specifications: * Poles: 8
* Current rating: 30 A rms continuous (40 A audiosignal, duty cycle 50 %)
* Rated voltage: 250 V ac
* Contact resistance: ≤ 3 mΩ (after lifetime)
* Dielectric strength: 4 kVdc (peak)
* Insulation resistance: > 1 GΩ (after dampheat)
* Cable O.D.: 8 – 20 mm
* Wiresize: 4 mm² / 12 AWG
* Wiring: Screw type terminals
* Locking device: Quick Lock (latch)
* Lifetime: > 5000 mating cycles
* Temperature range: -30 °C to +80 °C
