Description

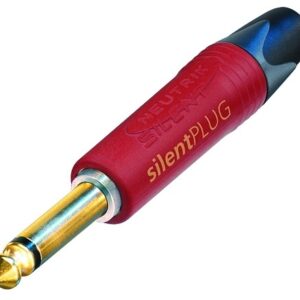

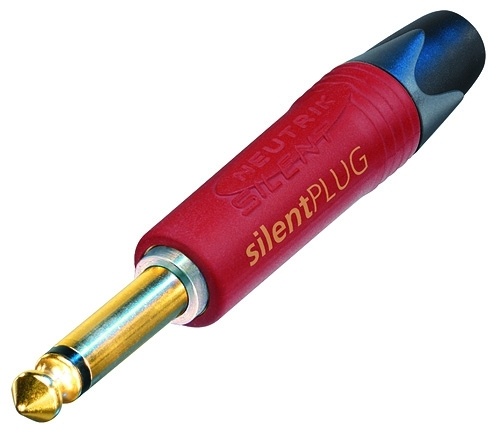

The Neutrik NP2X-AU-SILENT is a 2-pole 1/4″ professional phone plug with gold-plated contacts and a red rubber overlay, featuring a silent switch. This silentPLUG automatically mutes (shorts) an instrument (guitar) cable to prevent pops and squeals when changing the instrument under load. It is intended for use with instrument (guitar) applications only, as damage may occur if connected to an amplifier output. The integrated silent switch is based on REED technology and guarantees a lifetime beyond 10,000 mating cycles.
Specifications:
Product Type: 2 pole 1/4″ professional phone plug (plug, male)
Connection Type: Solder contacts
Contacts: Gold plated (0.2 μm Au)
Body/Shell: TPE + PA6
Insert: Polyamide (PA 6.6 30 % GR)
Strain Relief: Polyacetal (POM)
Cable O.D.: 4 – 7 mm
Lifetime: > 1000 mating cycles (product page lists > 1’000 mating cycles, other sources list > 10’000 mating cycles for the silent switch)
Wiresize: 1 mm² / 18 AWG
Rated Voltage: < 50 V
Dielectric Strength: 0.2 kVdc
Temperature Range: -20 °C to +65 °C
Standard Compliance: IEC 60603-11 / EIA RS-453
