Description

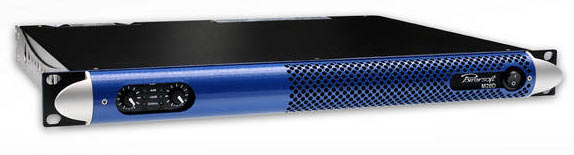

The Powersoft M20D HDSP+ETH is a 2-channel power amplifier with integrated DSP and Ethernet control, designed for professional touring and installation applications. It delivers high efficiency and remote management via ArmoníaPlus software.

Key Features:
– Channels: 2
– Power Output: 2 × 1200 W @ 4 Ohms, 2 × 600 W @ 8 Ohms
– DSP: Integrated HDSP (Analog Devices ADAU® 1701)
– Control Interface: Ethernet (RJ45), compatible with ArmoníaPlus, MediaMatrix, Crestron, AMX, Q-SYS
– Presets: Up to 4 accessible via rear panel pushbutton
– Protection: AC protection, clip limiter, thermal and short-circuit protection

Technical Specifications:
– Input Signal: 3-pin XLR (balanced)
– Output Signal: 3-pin XLR
– Speaker Output: Speakon NL4
– Power Supply: Advanced switch-mode
– Ripple Cancellation: Patented output filter
– Dimensions: 1U rackmount
– Weight: 7.4 kg
– Status: End-of-life product

Applications:
– Touring racks
– Fixed installations
– Medium-sized sound systems
– Venues requiring remote DSP control and efficient power delivery
