Description

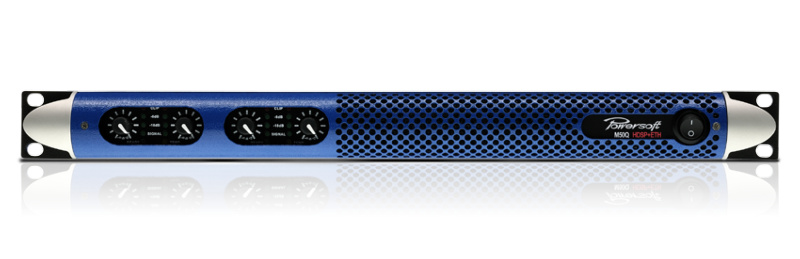

The Powersoft M50Q HDSP+ETH is a high-efficiency amplifier designed for professional audio applications. It features four independent channels and integrated DSP (HDSP) with Ethernet connectivity, allowing remote control and monitoring via ArmoníaPlus and third-party platforms like Crestron, AMX, and Q-SYS.

Power Output:
– 4 × 1250 W @ 4 Ohms
– 4 × 750 W @ 8 Ohms
– 2 × 2500 W bridged @ 8 Ohms

DSP & Control:
– DSP: Analog Devices ADAU® 1701
– Ethernet: RJ45 port for remote control
– Presets: 4 user-defined, accessible via rear panel
– Compatible with ArmoníaPlus, MediaMatrix, Crestron, AMX, Q-SYS

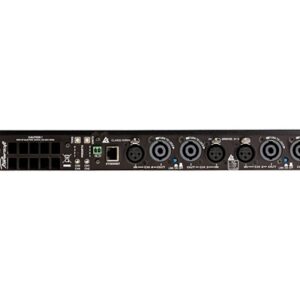

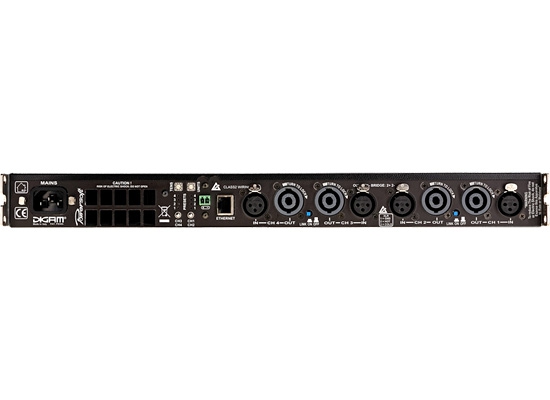

Connectivity:
– Inputs: 3-pin XLR (balanced)
– Outputs: 3-pin XLR (link), Speakon NL4 (speaker)
– Power Supply: Switch-mode with ripple cancellation

Protection & Monitoring:
– AC protection (shutdown outside voltage range)
– Clip limiter, thermal, short-circuit protection
– Status LEDs: Signal, Clip, Temp, Ready

Physical Specs:
– Size: 1U rackmount
– Depth: ~14 inches
– Weight: 7.4 kg (16.3 lbs)
– Cooling: Variable-speed fan

Applications:
– Touring racks
– Medium-sized sound systems
– Fixed installations requiring remote DSP control
