Description

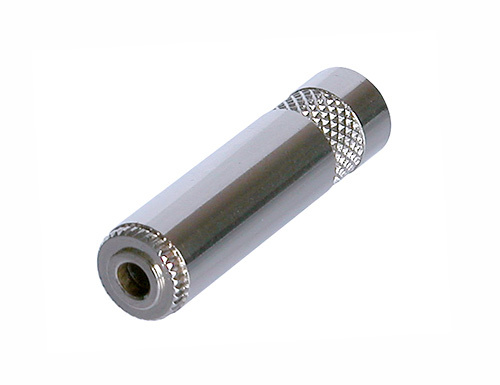

The Rean NYS240L is a three-pole 3.5mm cable jack with a metal handle and shell, and nickel-plated contacts. It is suitable for cables with a maximum outer diameter of 6mm (0.24″). This robust and reliable jack meets EIA RS-453 / IEC 60603-11 standards and can be used as a 3.5 mm 3-conductor stereo jack or TRS mono jack. It features a heavy-duty cable clamp for strain relief and a long lasting connectivity with its nickel contacts.
Specifications: * Connection Type: Jack
* Gender: Female
* Conductors: Stereo TRS (3-pole)
* Cable O.D. Max: 6 mm / 0.24″
* Dielectric Strength: 0.5 kVDC
* Insulation Resistance: ≥1 GOhm (Initial: >200 MΩ)
* Contact Resistance: ≤10 mΩ
* Rated Voltage: 500 VAC
* Lifetime: 1000 mating cycles
* Insertion Force: ≤20 N / ≤60N
* Withdrawal Force: ≥10 N / ≤60N
* Contact Plating: Nickel
* Shell: Brass with Nickel Plating
* Strain Relief: SnCe plated, crimp type
