Description

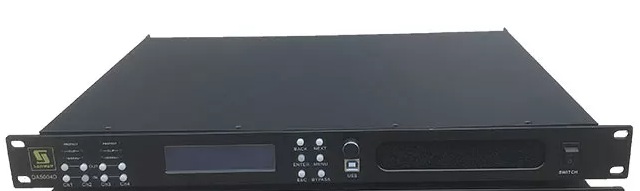

The Sanway DA5004D is a 3600W 1U Class D DSP Pa Audio Power Amplifier. It features class D amplification with built-in DSP, offering high efficiency, a compact, and lightweight design. It includes fans cooling and output protection.
Specifications: * Output Power: 4x500W at 8 ohms; 4x900W at 4 ohms.
* 8Ω Bridged Mono Power: 2×1500W
* Frequency Response: 20Hz-20KHz ±0.5dB (20Hz — 20KHz ±0.25dB)
* Signal to Noise Ratio: >110dB (110dB)
* Distortion (THD+N): < 0.01% (20Hz - 20KHz @ +10dBu balanced input); 0.10% (Rated power, 4Ω/KHz)
* Processor: 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter
* Dynamic Range: >110dB
* Input Impedance: 20KΩ Balanced / 10kΩ Unbalanced
* Output Connectors: Speakon Connectors (NEUTRIK)
* Power Requirement: 100-120V-50-60Hz or 200-240V-50-60Hz
* Dimension: 483×44×325mm
* Net Weight: 5.8kg
