Description

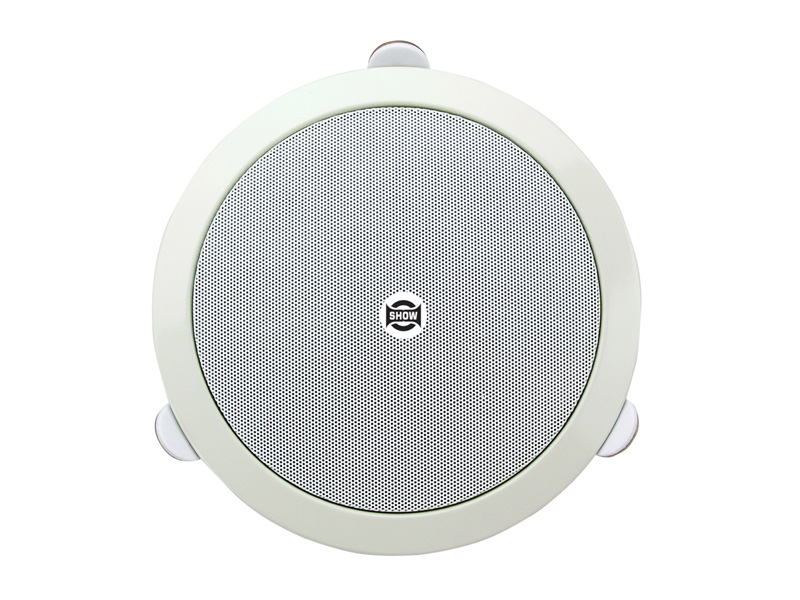

The SHOW CSL-6120 is a 20 Watt ceiling speaker, EN-5424 certified, suitable for various purposes from paging to background music. It features a single chassis equipped with a 6.5″ full range speaker.
Specifications: * Speaker: 6.5″ full range speaker
* Power: 20W (70V/100V Line)
* Impedance: 70V-1000Ω /500Ω /245Ω; 100V-2000Ω /1000Ω /500Ω
* Frequency Response: 95Hz-20kHz
* Sensitivity: 92dB (1W, 1m) – (500Hz-5kHz, pink noise)
* Standard: European Standard EN 54-24 /2008 (Certification no. 1438-CPR-0363)
* Material: Metal (Baffle: steel, painted; Grille: Steel net; Fire Dome: 5VB plastic)
* Dimensions: ∅ 199 x 13mm (exposed section) + 74(D)mm
* Dimensions for Fixing Hole: ∅ 178 mm (mounting hole) x 30 mm (max. ceiling thickness)
* Weight: 1.12kg (incl. bracket and dome)
* Operating Temperature: -10°C to +50°C
* Coverage Angle (-6dB) at 4kHz: 80°
