Description

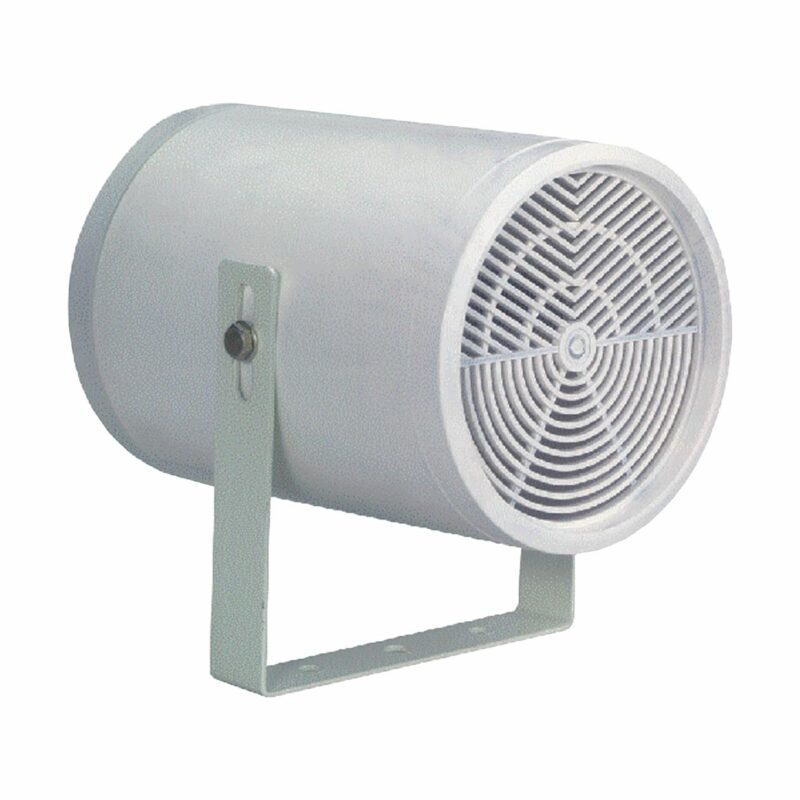

The SHOW CSP-220WP is a high-quality sound projector designed for Public Address systems, ideal for achieving high intelligibility of speech and music both outdoor and indoor. It is a mono speaker equipped with a 6.5” full-range plastic cone transducer. The “WP” model is IP44 rated, making it suitable for covered installations not exposed to excessive dampness.
Specifications: * Model: CSP-220WP
* Rated Power (RMS): 20W
* Output: 5, 10, 20W
* Transducer: 1 x 6.5” 8Ω plastic cone
* Input Voltage: 50V, 70V, 100V
* Impedance: 100V: 2kΩ, 1kΩ, 500Ω; 70V: 1kΩ, 490Ω, 245Ω; 50V: 500Ω, 245Ω, 125Ω
* Frequency Response: 100Hz~20KHz
* SPL (1W/1m): 94dB
* Material: ABS resin
* Protection Rate: IP44
* Dimensions (Diam. x L): 180 x 251.5 mm
* Weight: 2.2kg
