Description

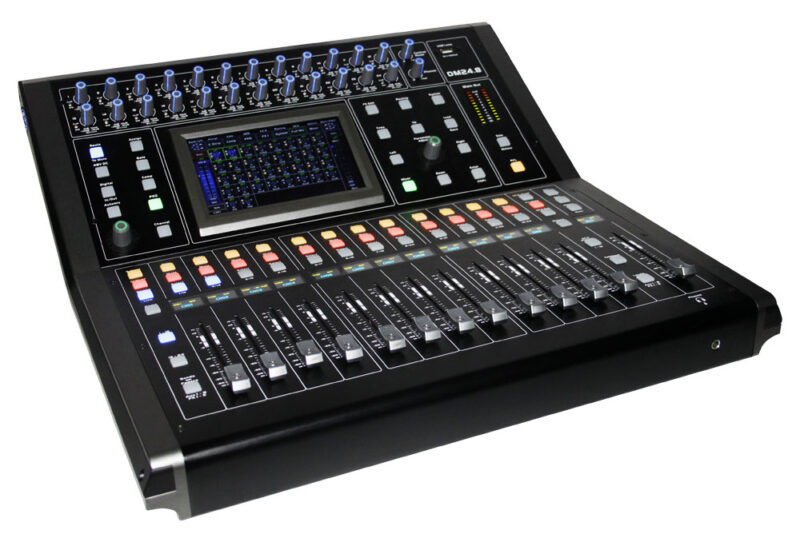

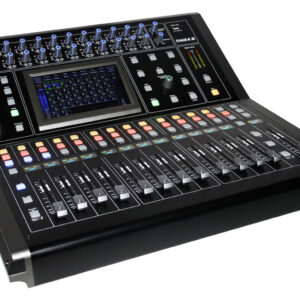

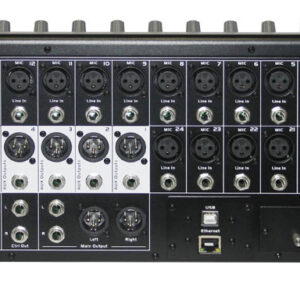

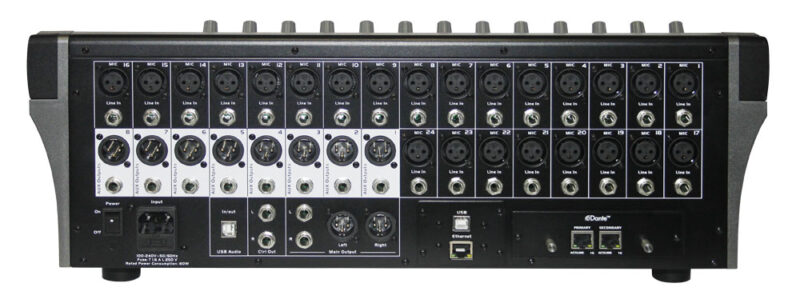

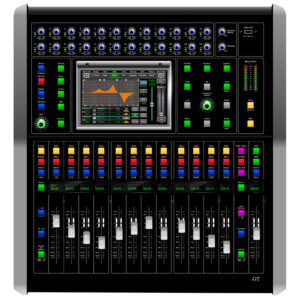

The Topp Pro DM24.8 is a digital mixer that offers professional features for users, including beginners looking to step into the digital world.
Specifications include: * Microphone input: Electronically balanced
* Phantom Power (+/-3V): +48VDC
* Line Input: Electronically balanced (75K), Stereo input (27K)
* All other output: 240 Ohms
* Frequency Response to Main Output: 22Hz ~ 22KHz at 0dBu ±1.5dBu
* Distortion (THD&N) to Main Output: <0.01% at 0dBu 1KHz
* Maximum Input Level (Gain at 0dBu): +20dBu ±0.5dBu
* Maximum Outputs Level: +20dBu ±0.5dBu
* Maximum Input Level: +20dBu ±0.5dBu, 10dBu ±0.5dBu (for some USB stereo inputs and Main Outputs)
* Gain: -20dBu ~ +30dBu (for some inputs), 0dBu ~ 50dBu (for others)
* SNR (Signal to Noise Ratio): 111dB
* Operating free-air temperature range: 0ºC ~ 40ºC
* Storage temperature range: -20ºC ~ 45ºC
* Dimensions: 528x526x172mm
* ADC Dynamic Range: 114dB
* DAC Dynamic Range: 114dB
* Internal Processor: 32-bit floating point
* ADC, DAC bit depth: 24bit
* Compressor Threshold Range: -30dBu - +20dB
* Compressor Attack time: 10mS ~ 150mS
* Compressor Release time: 10mS ~ 1S
* Compressor Ratio: 1:1 to Limit
* Compressor Gain: 0dBu - +24dB
* Gate/Expander Attack time: -84dBu ~ +20dB
* Gate/Expander Release time: 0.5mS ~ 200mS
