Description

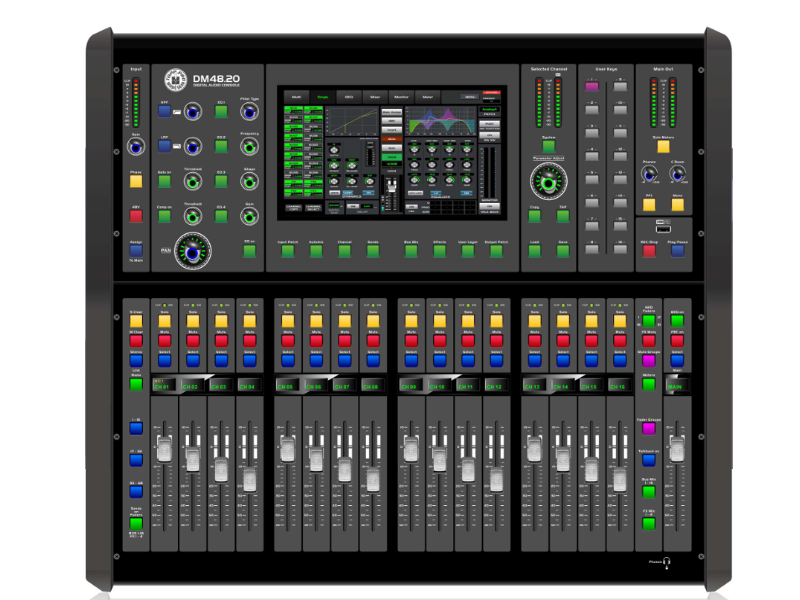

The ToppPro DM48.20 is a digital mixer with 48 channels. Key features include 32 XLR analog inputs with digital gain control, 32 digital inputs, 16 BUS mix bus, and 8 MATRIX mix bus.
Specifications: * **Channels:** 48
* **Analog Inputs:** 32 XLR with digital gain control
* **Digital Inputs:** 32
* **Mix Bus:** 16 BUS mix bus and 8 MATRIX mix bus
* **Internal Processor:** 32-bit, floating point
* **ADC/DAC bit depth:** 24bit
* **ADC/DAC Dynamic Range:** 114dB
* **Main LCD:** 10.1 inch (1024×600)
* **Channel LCD:** 0.96 inch (128×64)
* **Maximum Input Level (Mic):** +20dBu ±0.5dBu
* **Maximum Output Level:** +20dBu ±0.5dBu
* **Phantom Power:** +48VDC
* **Frequency Response to Main Output:** 22Hz ~ 22KHz at 0dBu ±1.5dBu
* **Distortion (THD&N) to Main Output:** <0.03% at 0dBu 1KHz
* **SNR (Signal to Noise Ratio):** 109dB
* **Operating free-air temperature range:** 0ºC ~ 40ºC
