Description

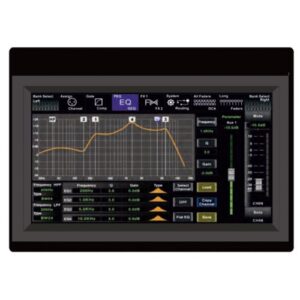

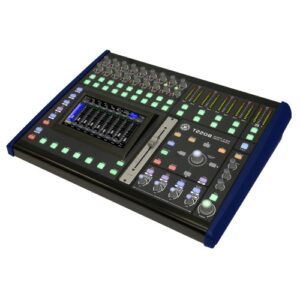

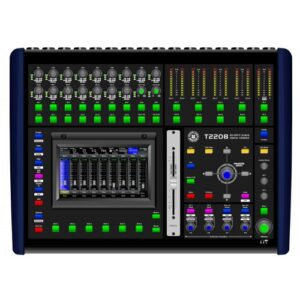

The ToppPro T2208 is a digital mixer featuring a 7-inch LCD touch screen. It has 32 DSP channels, each equipped with a Gate, Compressor, and 4-Bands Parametric EQ. It also includes 2 digital FXs and a 31-Bands graphic EQ on each output.
Key Specifications: * **Microphone input:** Electronically balanced, with +48VDC Phantom Power (+/-3V).
* Gain: -8 to +10dBu or -15dBu ~ +35dBu.
* Maximum Input Level: +22dBu (+20dBu with Gain at 0dBu).
* Frequency Response to Main Output: 20Hz~20KHz at +4dBu ±1.5dB.
* Distortion (THD&N) to Main Output: <0.01 % at 0dBu 1KHz.
* SNR (Signal to Noise Ratio): 104dB.
* **Line inputs:** Unbalanced.
* Frequency Response to direct Output: 20Hz-20KHz at 0dBu ±1.5dB.
* **17-18/19-20 stereo inputs:** Balanced (2 stereo pair).
* **Internal Processor:** 32-bit, floating point.
* **ADC/DAC bit depth:** 24bit.
* **Dynamic Range (ADC/DAC):** 114dB.
* **Operating free-air temperature range:** 0ºC~40ºC.
* **Storage temperature range:** -20ºC~60ºC.
