Description

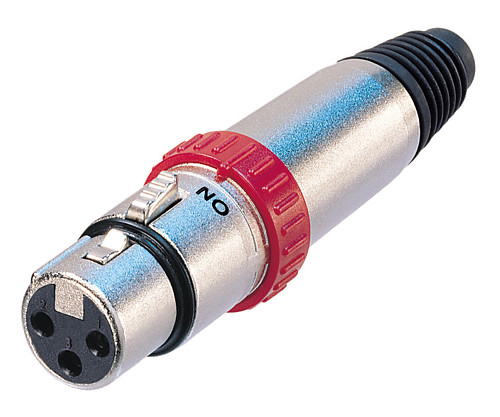

The Neutrik NC3FXS is a 3 pole female cable connector (FX cable connector) with a noiseless ON-OFF switch that short-circuits contacts 2 and 3. It is designed for use on a microphone without a switch.
Key features include: * Rugged zinc diecast shell and metal boot, providing long-lasting durability.
* Chuck-type strain relief system for secure clamping of cables (Cable O.D. 3.5 – 7.0 mm).
* Boot with a rubber gland for high protection against bending stresses.Specifications: * Electrical: Contact resistance ≤ 3 mΩ; Dielectric strength 1.5 kVdc; Insulation resistance > 10 GΩ (initial); Rated current per contact 16 A; Rated voltage < 50 V; Capacitance between contacts ≤ 4 pF.
* Mechanical: Lifetime > 1000 mating cycles; Insertion/Withdrawal force ≤ 20 N; Wiresize max. 2.5 mm² / 14 AWG; Wiring via Solder contacts; Locking device is a Latch lock.
* Material: Contacts are Bronze (CuSn6) with 0.2 µm Au hard alloy over 2 µm Ni plating; Insert is Polyamide (PA66); Shell is Zinc diecast (ZnAl4Cu1), Nickel plated; Strain relief is Polyacetal (POM); Boot is Polyurethan.
* Environmental: Standard compliance IEC 61076-2-103; Flammability UL 94 V-0; Protection class IP 40; Solderability complies with IEC 68-2-20; Temperature range -30 °C to +80 °C.
