Description

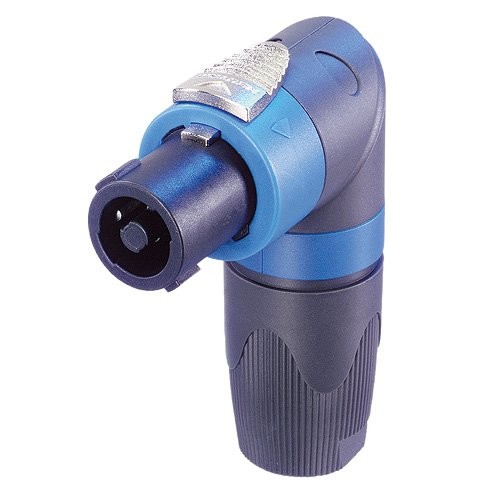

The Neutrik NL4FRX is a 4-pole Speakon cable connector with a right-angle design, engineered for professional speaker and amplifier connections. It features a robust locking mechanism and chuck-type strain relief for secure mating and long-term durability in live sound and touring environments.
This connector is part of Neutrik’s Speakon series, known for high current capacity and reliable signal transmission. The NL4FRX supports cables up to 10 mm in diameter and is rated for 40 A RMS continuous current. Its ergonomic design allows easy handling and quick assembly without screws.
Specifications:
– Type: 4-pole Speakon cable connector (right-angle)
– Orientation: Right-angle
– Rated Current: 40 A RMS continuous
– Rated Voltage: 250 V AC
– Cable Compatibility: Up to 10 mm diameter
– Locking: Quick-lock with secure latching
– Strain Relief: Chuck-type
– Termination: Screw-type terminals (no soldering required)
– Application: Speaker cables, amplifier outputs, live sound systems
– Compliance: IEC 61984
