Description

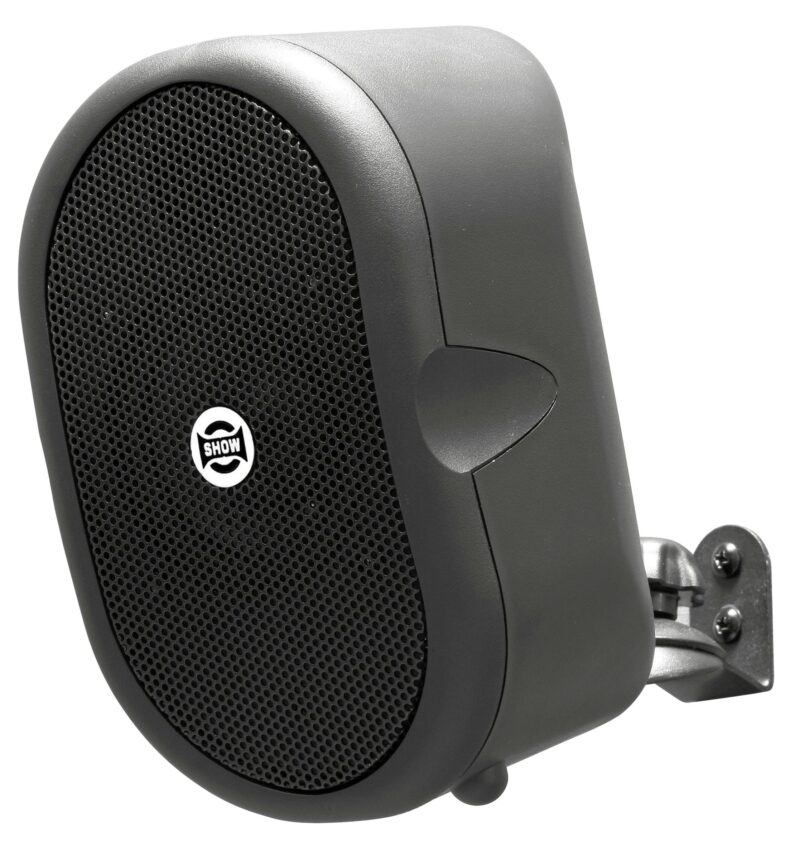

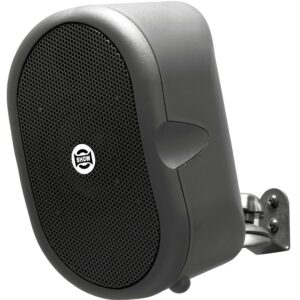

The SHOW CSB-40T is a compact surface mount speaker designed for broadcasting speech and music. It is EN 54-24 certified for use in voice alarm installations and can be used in both indoor and various outdoor applications due to its IP 44 rating. The speaker is equipped with a 4-inch full-range transducer and has a power output of 40W. It integrates high-impedance outputs for 100V and 70V installations, with a built-in transformer allowing for selectable power levels. The cabinet is made of scratch- and shock-resistant ABS resin and is available in black or white.
Specifications: * Model: CSB-40T
* Type: Indoor/Outdoor Speaker, Speaker Cabinet with Transformer
* Standards: EN 54-24: 2008
* Transducer: 1 x 4” full range speaker
* Rated Power (70V / 100V): 40W
* Available Power 70V: 5, 10, 20, 40W
* Available Power 100V: 10, 20, 40W
* Frequency Response: 76Hz to 18kHz (20Hz – 20kHz in some sources)
* SPL (1W/1m): 90dB (+/-3dB)

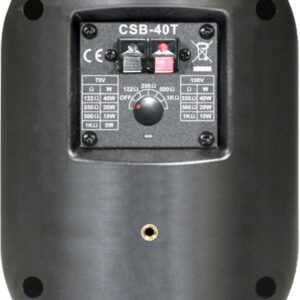

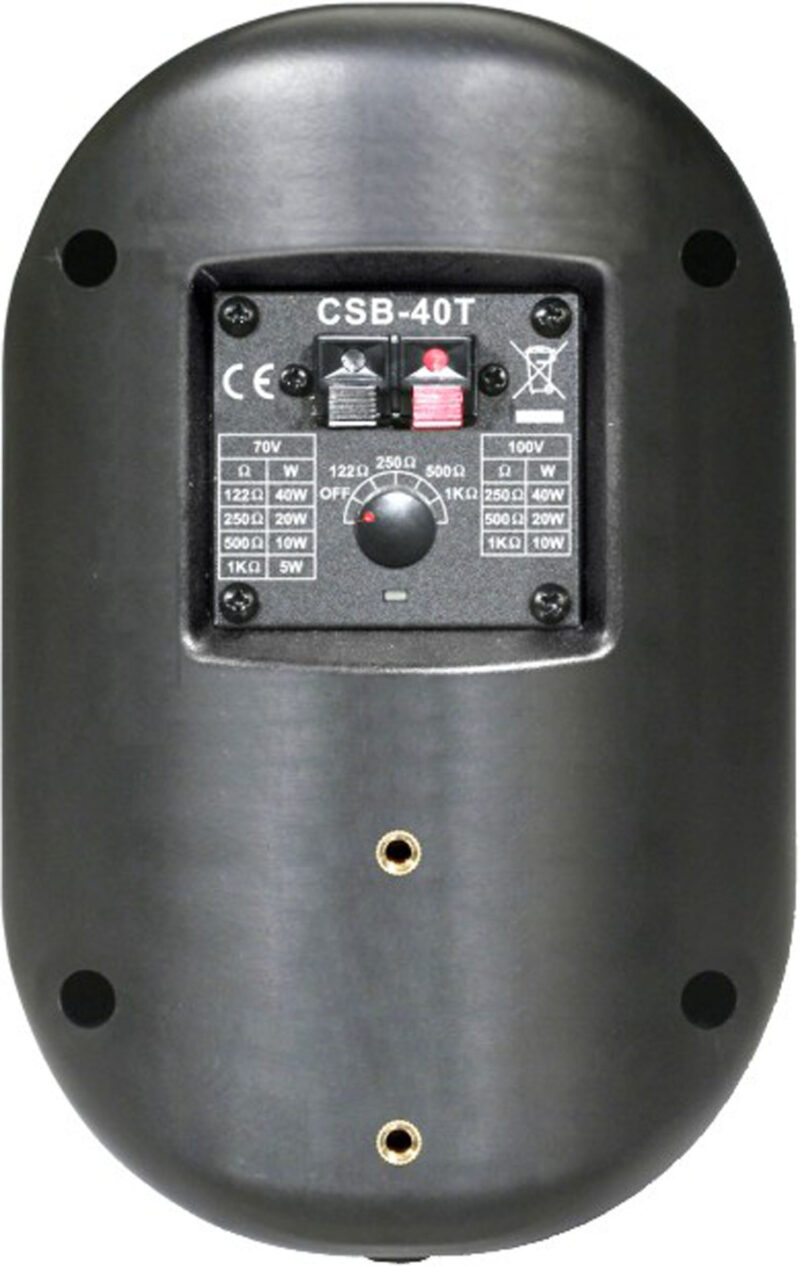

* Rated Impedance 70V: 1kΩ, 500Ω, 250Ω, 122Ω
* Rated Impedance 100V: 1kΩ, 500Ω, 250Ω
* Impedance (nominal): 8 Ohms (passive model/bypass)
* Color: Black / White
* Weight: 2.4 kg (5.3 lbs.)
* IP Rating: IP 44
